Get to know our satellite subsystems

Our platforms employ in-house developed, powerful & robust subsystems for the success of your mission.

STRUCTURES

3-12U Structures (STRU)

C3S offers two different designs when it comes to structures so that every customer can find the right solution. The one used during the Radcube mission has a stackable design along with unique wiring system, while the other design allows flexible payload and subsystem positioning for optimal configurability.

Your Title Goes Here

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

EPS

Your Title Goes Here

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

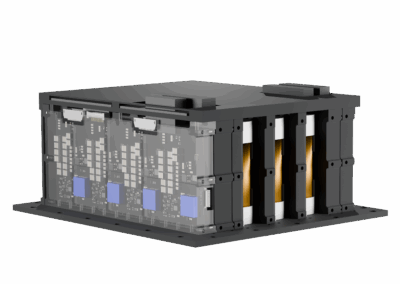

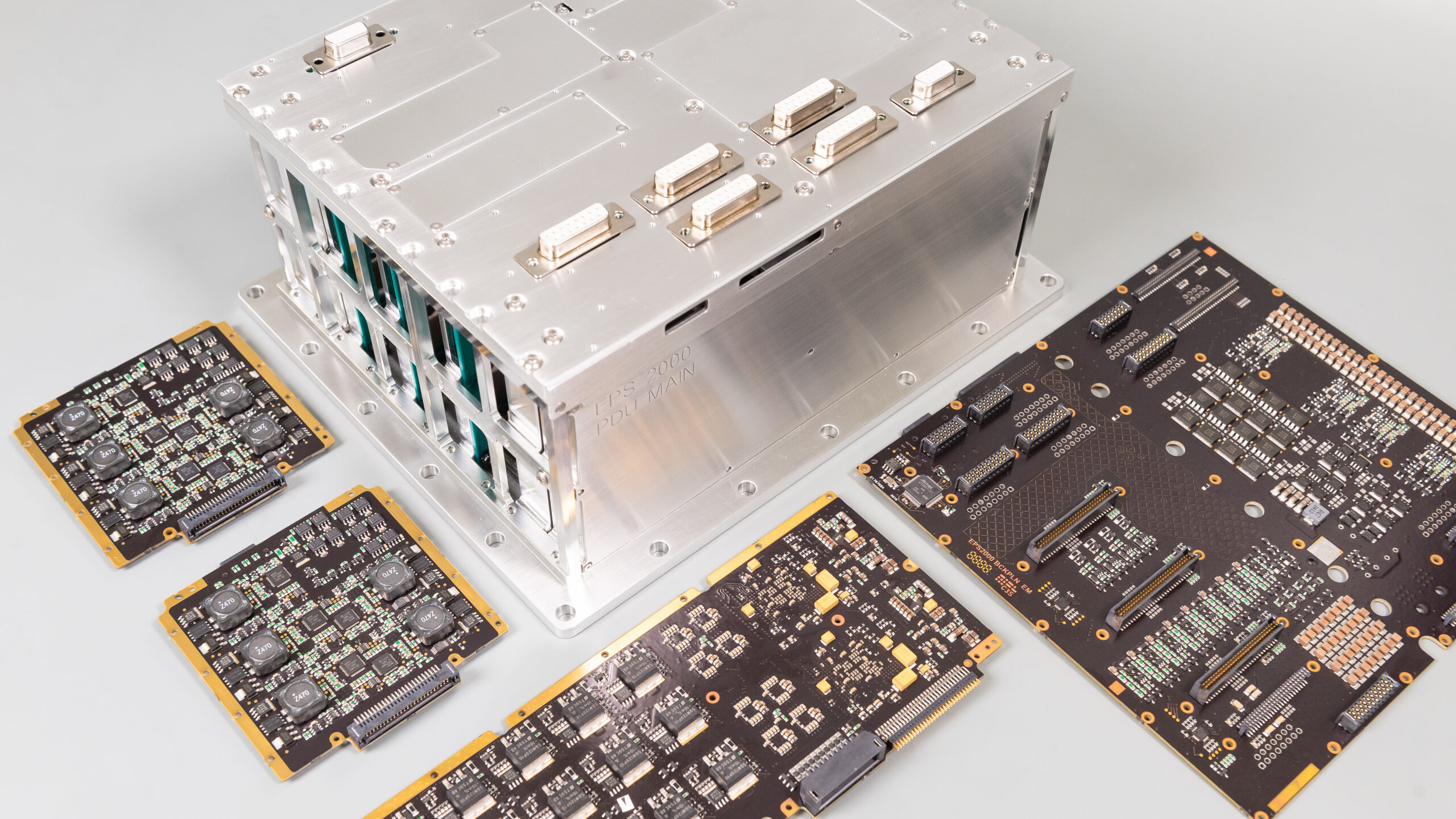

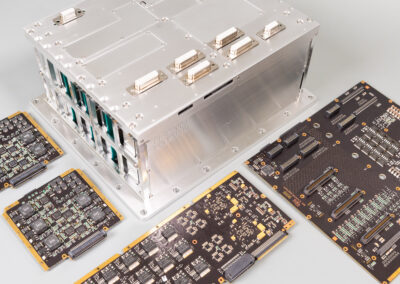

Electrical Power System (EPS)

Main Features

  • Flight heritage acquired in 2021 with the launch of RadCube
  • Cold Redundancy and Graceful Degradation
  • Single point failure tolerant
  • Telemetry and telecommand communication with redundant CAN bus
  • Temperature ranges:
    • circuits: -40°C to 80°C qualified
    • battery: 0°C to 50°C
  • Autonomous LCL protection
  • Autonomous Battery heater and balancing
  • Two-level battery undervoltage protection
  • Robust aluminium (T-7070) milling case
OBC

On-Board Computer (OBC)

Main Features

  • Flight heritage acquired in 2021 with the launch of RadCube
  • Single-point failure tolerant design
  • Cold redundancy
  • High-performance MCU
  • Optional Daughterboard for memory expansion
  • Serial communication interfaces using differential signaling (CAN, M-LVDS)
  • Computing performance: up to 642 DMIPS
  • Space grade connector to the backplane
  • ESA approved Interface Control Document
COM

Communication Subsystem (COM)

Main Features

  • Flight heritage acquired in 2021 with the launch of RadCube
  • Single-point failure tolerant design
  • Cold in transmit and receive and optional hot redundancy in receive
  • High-performance MCU
  • Health telemetry
  • Serial communication interfaces using differential signaling (CAN, M-LVDS)
  • Space grade connector to the backplane
  • ESA approved Interface Control Document
  • Redundant CAN and MLVDS buses (OBC)
  • Channel coding: RS, BCH
  • Transmit power up to 1000 mW
  • Data rate: 1250 bps to 150 kbps
  • Tailoring ECSS/CCSDS
ANTENNA SYSTEM

Antenna System (ANT)

Main Features

  • Flight heritage acquired in 2021 with the launch of RadCube
  • Curved cross section tape
  • Near omnidirectional radiation pattern
  • Antenna – Stainless spring steel
  • 0.1–2.0 second opening time (from -70°C to +85°C)
  • Cold redundant system
  • ESA qualified concept
  • Easy to tune
  • Antenna configuration: V-dipole
